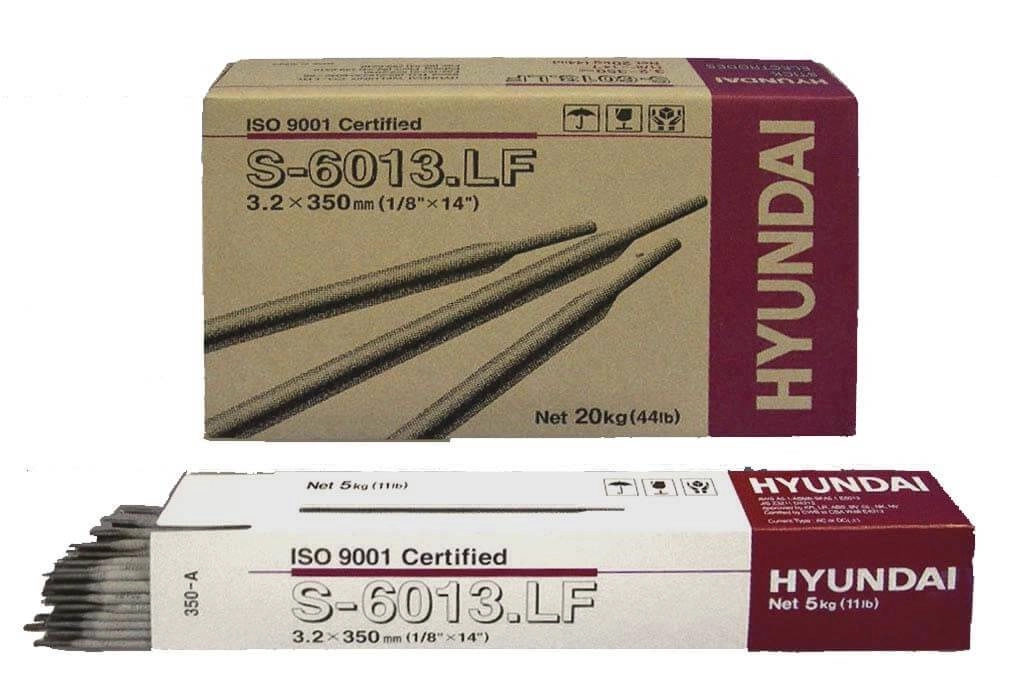

HYUNDAI Welding Electrode, S-6013.LF(A), 3.2×350 mm Length, Normal Pack AWS A5.1 / ASME SFA5.1 E6013, 20 kg Box, 5 kg Packet. Made in China.
HYUNDAI Welding Electrode, S-6013.LF(A), 3.2×350 mm Length, Normal Pack AWS A5.1 / ASME SFA5.1 E6013, 20 kg Box, 5 kg Packet. Made in China.
Hyundai Electrode S-6013.LF is a high titania type electrode which generates 20% less fume than conventional high titania type electrodes. S-6013 LF Electrodes are suitable for welding of light structural steels because of the stable arc, shallow penetration and smooth welding bead. AWS A5.1 E6013
Product Price
You can directly request a quote with this product by submitting the form, and our team will get back to you with more details.
HYUNDAI Welding Electrode, S-6013.LF(A), 3.2×350 mm Length, Normal Pack AWS A5.1 / ASME SFA5.1 E6013, 20 kg Box, 5 kg Packet. Made in China.
The HYUNDAI S-6013.LF(A) Welding Electrode (Part No. C10006174) is a premium AWS A5.1 / ASME SFA5.1 E6013 rutile-coated mild steel electrode developed for Shielded Metal Arc Welding (SMAW) of carbon and mild steels. Manufactured in China under Hyundai Welding's strict quality standards, it offers excellent weldability, smooth arc stability, and high-quality weld deposits for a wide range of industrial and maintenance applications.
With a 3.2 mm diameter and 350 mm length, this electrode is well suited for welding medium-thickness steel sections in fabrication, construction, and repair work. Its low-fume (LF) formulation provides improved operator comfort while delivering easy arc striking, stable arc performance, low spatter, and fast slag removal, resulting in clean and attractive weld beads.
The S-6013.LF(A) is suitable for all welding positions and performs exceptionally well with both AC and DC power sources. It produces sound welds with excellent mechanical properties, making it an ideal choice for structural fabrication, steel furniture manufacturing, machinery repair, agricultural equipment, vehicle body repair, ship repair, and general workshop maintenance.
Supplied in a 20 kg box containing four 5 kg packets, the electrode offers convenient packaging for industrial production and daily workshop use.
Key Features
- Part Number: C10006174
- AWS Classification: E6013
- Standard: AWS A5.1 / ASME SFA5.1
- Premium rutile-coated mild steel SMAW electrode
- 3.2 mm diameter × 350 mm length
- Smooth, stable arc with easy arc ignition
- Low spatter and excellent weld bead appearance
- Fast and easy slag removal
- Suitable for AC and DC welding
- All-position welding capability
- Low-fume (LF) formulation
- 20 kg box (4 × 5 kg packets)
- Made in China
Applications
- Mild steel fabrication
- Structural steel construction
- General engineering
- Steel furniture manufacturing
- Agricultural equipment
- Machinery fabrication and repair
- Vehicle body repair
- Ship repair
- Industrial maintenance
- Workshop fabrication
Specifications
| Specification | Details |
|---|---|
| Brand | HYUNDAI Welding |
| Part Number | C10006174 |
| Product Name | S-6013.LF(A) Welding Electrode |
| AWS Classification | E6013 |
| Standard | AWS A5.1 / ASME SFA5.1 |
| Welding Process | SMAW (Shielded Metal Arc Welding) |
| Diameter | 3.2 mm |
| Length | 350 mm |
| Packaging | 20 kg per box (4 × 5 kg packets) |
| Power Source | AC / DC |
| Country of Origin | Made in China |
| Applications | Mild Steel Fabrication, Construction, General Engineering, Maintenance and Repair |
HYUNDAI Welding Electrode, S-6013.LF(A), 3.2×350 mm Length, Normal Pack AWS A5.1 / ASME SFA5.1 E6013, 20 kg Box, 5 kg Packet. Made in China.
The HYUNDAI S-6013.LF(A) Welding Electrode (Part No. C10006174) is a premium AWS A5.1 / ASME SFA5.1 E6013 rutile-coated mild steel electrode developed for Shielded Metal Arc Welding (SMAW) of carbon and mild steels. Manufactured in China under Hyundai Welding's strict quality standards, it offers excellent weldability, smooth arc stability, and high-quality weld deposits for a wide range of industrial and maintenance applications.
With a 3.2 mm diameter and 350 mm length, this electrode is well suited for welding medium-thickness steel sections in fabrication, construction, and repair work. Its low-fume (LF) formulation provides improved operator comfort while delivering easy arc striking, stable arc performance, low spatter, and fast slag removal, resulting in clean and attractive weld beads.
The S-6013.LF(A) is suitable for all welding positions and performs exceptionally well with both AC and DC power sources. It produces sound welds with excellent mechanical properties, making it an ideal choice for structural fabrication, steel furniture manufacturing, machinery repair, agricultural equipment, vehicle body repair, ship repair, and general workshop maintenance.
Supplied in a 20 kg box containing four 5 kg packets, the electrode offers convenient packaging for industrial production and daily workshop use.
Key Features
- Part Number: C10006174
- AWS Classification: E6013
- Standard: AWS A5.1 / ASME SFA5.1
- Premium rutile-coated mild steel SMAW electrode
- 3.2 mm diameter × 350 mm length
- Smooth, stable arc with easy arc ignition
- Low spatter and excellent weld bead appearance
- Fast and easy slag removal
- Suitable for AC and DC welding
- All-position welding capability
- Low-fume (LF) formulation
- 20 kg box (4 × 5 kg packets)
- Made in China
Applications
- Mild steel fabrication
- Structural steel construction
- General engineering
- Steel furniture manufacturing
- Agricultural equipment
- Machinery fabrication and repair
- Vehicle body repair
- Ship repair
- Industrial maintenance
- Workshop fabrication
Specifications
| Specification | Details |
|---|---|
| Brand | HYUNDAI Welding |
| Part Number | C10006174 |
| Product Name | S-6013.LF(A) Welding Electrode |
| AWS Classification | E6013 |
| Standard | AWS A5.1 / ASME SFA5.1 |
| Welding Process | SMAW (Shielded Metal Arc Welding) |
| Diameter | 3.2 mm |
| Length | 350 mm |
| Packaging | 20 kg per box (4 × 5 kg packets) |
| Power Source | AC / DC |
| Country of Origin | Made in China |
| Applications | Mild Steel Fabrication, Construction, General Engineering, Maintenance and Repair |
