ESAB Welding Electrode OK 316L E316L-16 4.0x350mm 12.9Kg Made In Sweden (pack size : 4.3 KG )
ESAB Welding Electrode OK 316L E316L-16 4.0x350mm 12.9Kg Made In Sweden (pack size : 4.3 KG )
ESAB OK 316L Welding Electrode (Part No. 6398403020), AWS E316L-16, 4.0 × 350 mm – Premium stainless steel SMAW electrode for welding 316 and 316L stainless steels, offering exceptional corrosion resistance, smooth arc performance, and superior weld quality. Supplied in a 12.9 kg box (3 × 4.3 kg packets). Made in Sweden.
Product Price
You can directly request a quote with this product by submitting the form, and our team will get back to you with more details.
ESAB Welding Electrode OK 316L E316L-16 4.0x350mm 12.9Kg Made In Sweden (pack size : 4.3 KG )
The ESAB OK 316L Welding Electrode (Part No. 6398403020) is a premium AWS A5.4 / ASME SFA5.4 E316L-16 rutile-coated stainless steel electrode developed for Shielded Metal Arc Welding (SMAW) of AISI 316, 316L, and similar molybdenum-alloyed austenitic stainless steels. Manufactured in Sweden, this electrode delivers outstanding corrosion resistance, excellent mechanical properties, and high-quality weld deposits for demanding industrial and fabrication applications.
With a 4.0 mm diameter and 350 mm length, the electrode is ideal for welding medium to heavy-gauge stainless steel components. Its low-carbon (L) weld deposit minimizes carbide precipitation during welding, reducing the risk of intergranular corrosion while providing excellent resistance to pitting, crevice corrosion, and aggressive chemical environments.
The rutile coating ensures easy arc ignition and re-ignition, stable arc characteristics, low spatter, and easy slag removal, producing smooth, uniform weld beads with excellent appearance and minimal post-weld cleaning. Suitable for all-position welding, the electrode is widely used in chemical and petrochemical plants, food and beverage processing equipment, pharmaceutical manufacturing, marine and offshore fabrication, pressure vessels, heat exchangers, and stainless steel piping systems.

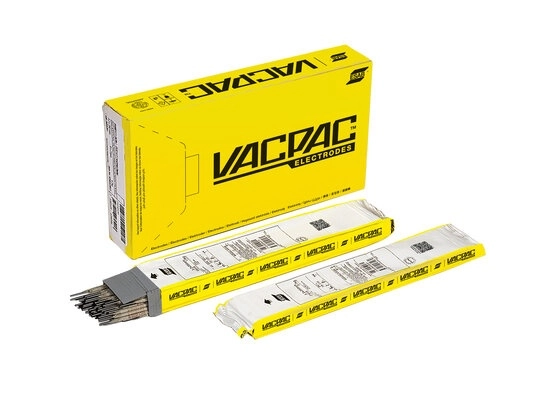

Supplied in a 12.9 kg box containing three 4.3 kg packets, the electrodes are moisture protected to ensure consistent welding performance, extended shelf life, and reliable results in both workshop and site applications.
Key Features
- Part Number: 6398403020
- AWS Classification: E316L-16
- Premium stainless steel SMAW electrode
- 4.0 mm diameter × 350 mm length
- Ideal for welding 316 and 316L stainless steels
- Low-carbon weld deposit for enhanced corrosion resistance
- Excellent resistance to pitting, crevice, and chemical corrosion
- Smooth, stable arc with low spatter
- Easy slag removal and excellent weld bead appearance
- Suitable for all-position welding
- 12.9 kg box (3 × 4.3 kg packets)
- Made in Sweden
Applications
- Stainless steel fabrication
- Chemical and petrochemical plants
- Food and beverage processing equipment
- Pharmaceutical manufacturing
- Marine and offshore fabrication
- Pressure vessels
- Heat exchangers
- Stainless steel piping systems
- Power generation
- Industrial maintenance and repair
Specifications
| Specification | Details |
|---|---|
| Brand | ESAB |
| Part Number | 6398403020 |
| Product Name | OK 316L Welding Electrode |
| AWS Classification | E316L-16 |
| Standard | AWS A5.4 / ASME SFA5.4 |
| Welding Process | SMAW (Shielded Metal Arc Welding) |
| Diameter | 4.0 mm |
| Length | 350 mm |
| Packaging | 12.9 kg box (3 × 4.3 kg packets) |
| Country of Origin | Made in Sweden |
| Suitable Base Materials | AISI 316, 316L and similar austenitic stainless steels |
| Applications | Stainless Steel Fabrication, Chemical Processing, Marine, Food Processing, Pressure Vessels, Industrial Maintenance |
ESAB Welding Electrode OK 316L E316L-16 4.0x350mm 12.9Kg Made In Sweden (pack size : 4.3 KG )
The ESAB OK 316L Welding Electrode (Part No. 6398403020) is a premium AWS A5.4 / ASME SFA5.4 E316L-16 rutile-coated stainless steel electrode developed for Shielded Metal Arc Welding (SMAW) of AISI 316, 316L, and similar molybdenum-alloyed austenitic stainless steels. Manufactured in Sweden, this electrode delivers outstanding corrosion resistance, excellent mechanical properties, and high-quality weld deposits for demanding industrial and fabrication applications.
With a 4.0 mm diameter and 350 mm length, the electrode is ideal for welding medium to heavy-gauge stainless steel components. Its low-carbon (L) weld deposit minimizes carbide precipitation during welding, reducing the risk of intergranular corrosion while providing excellent resistance to pitting, crevice corrosion, and aggressive chemical environments.
The rutile coating ensures easy arc ignition and re-ignition, stable arc characteristics, low spatter, and easy slag removal, producing smooth, uniform weld beads with excellent appearance and minimal post-weld cleaning. Suitable for all-position welding, the electrode is widely used in chemical and petrochemical plants, food and beverage processing equipment, pharmaceutical manufacturing, marine and offshore fabrication, pressure vessels, heat exchangers, and stainless steel piping systems.
Supplied in a 12.9 kg box containing three 4.3 kg packets, the electrodes are moisture protected to ensure consistent welding performance, extended shelf life, and reliable results in both workshop and site applications.
Key Features
- Part Number: 6398403020
- AWS Classification: E316L-16
- Premium stainless steel SMAW electrode
- 4.0 mm diameter × 350 mm length
- Ideal for welding 316 and 316L stainless steels
- Low-carbon weld deposit for enhanced corrosion resistance
- Excellent resistance to pitting, crevice, and chemical corrosion
- Smooth, stable arc with low spatter
- Easy slag removal and excellent weld bead appearance
- Suitable for all-position welding
- 12.9 kg box (3 × 4.3 kg packets)
- Made in Sweden
Applications
- Stainless steel fabrication
- Chemical and petrochemical plants
- Food and beverage processing equipment
- Pharmaceutical manufacturing
- Marine and offshore fabrication
- Pressure vessels
- Heat exchangers
- Stainless steel piping systems
- Power generation
- Industrial maintenance and repair
Specifications
| Specification | Details |
|---|---|
| Brand | ESAB |
| Part Number | 6398403020 |
| Product Name | OK 316L Welding Electrode |
| AWS Classification | E316L-16 |
| Standard | AWS A5.4 / ASME SFA5.4 |
| Welding Process | SMAW (Shielded Metal Arc Welding) |
| Diameter | 4.0 mm |
| Length | 350 mm |
| Packaging | 12.9 kg box (3 × 4.3 kg packets) |
| Country of Origin | Made in Sweden |
| Suitable Base Materials | AISI 316, 316L and similar austenitic stainless steels |
| Applications | Stainless Steel Fabrication, Chemical Processing, Marine, Food Processing, Pressure Vessels, Industrial Maintenance |
