ESAB Welding Electrode OK 316L E316L-16 2.5x300mm 10.2Kg Box, 1.7Kg Pkt Made In Sweden.
ESAB Welding Electrode OK 316L E316L-16 2.5x300mm 10.2Kg Box, 1.7Kg Pkt Made In Sweden.
ESAB OK 316L Welding Electrode (Part No. 6398252030), AWS E316L-16, 2.5 × 300 mm – Premium stainless steel SMAW electrode for welding 316 and 316L stainless steels, offering excellent corrosion resistance, smooth arc performance, and superior weld quality. Supplied in a 10.2 kg box (6 × 1.7 kg packets). Made in Sweden.
Product Price
You can directly request a quote with this product by submitting the form, and our team will get back to you with more details.
ESAB Welding Electrode OK 316L E316L-16 2.5x300mm 10.2Kg Box, 1.7Kg Pkt Made In Sweden.
The ESAB OK 316L Welding Electrode (Part No. 6398252030) is a premium AWS A5.4 / ASME SFA5.4 E316L-16 rutile-coated stainless steel electrode designed for Shielded Metal Arc Welding (SMAW) of AISI 316, 316L, and similar molybdenum-alloyed austenitic stainless steels. Manufactured in Sweden, this electrode delivers excellent corrosion resistance, superior weld quality, and reliable mechanical properties for demanding industrial and fabrication applications.
With a 2.5 mm diameter and 300 mm length, the electrode is ideal for welding thin to medium-thickness stainless steel sections. The low-carbon (L) weld deposit minimizes carbide precipitation during welding, significantly reducing the risk of intergranular corrosion while providing outstanding resistance to pitting, crevice corrosion, and aggressive chemical environments.
The rutile coating provides easy arc ignition and re-ignition, a smooth and stable arc, low spatter, and easy slag removal, resulting in clean, attractive weld beads with minimal post-weld finishing. Suitable for all-position welding, the electrode is widely used in chemical and petrochemical plants, food and beverage processing equipment, pharmaceutical manufacturing, marine and offshore fabrication, pressure vessels, heat exchangers, and stainless steel piping systems.

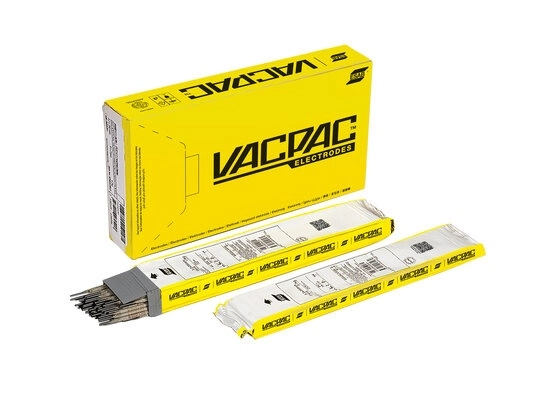

Supplied in a 10.2 kg box containing six 1.7 kg packets, the electrodes are moisture protected to maintain consistent welding performance, extended shelf life, and dependable quality in workshop and site environments.
Key Features
- Part Number: 6398252030
- AWS Classification: E316L-16
- Premium stainless steel SMAW electrode
- 2.5 mm diameter × 300 mm length
- Ideal for welding 316 and 316L stainless steels
- Low-carbon weld deposit for enhanced corrosion resistance
- Excellent resistance to pitting, crevice, and chemical corrosion
- Smooth, stable arc with low spatter
- Easy slag removal and excellent weld bead appearance
- Suitable for all-position welding
- 10.2 kg box (6 × 1.7 kg packets)
- Made in Sweden
Applications
- Stainless steel fabrication
- Chemical and petrochemical plants
- Food and beverage processing equipment
- Pharmaceutical manufacturing
- Marine and offshore fabrication
- Pressure vessels
- Heat exchangers
- Stainless steel piping systems
- Power generation
- Industrial maintenance and repair
Specifications
| Specification | Details |
|---|---|
| Brand | ESAB |
| Part Number | 6398252030 |
| Product Name | OK 316L Welding Electrode |
| AWS Classification | E316L-16 |
| Standard | AWS A5.4 / ASME SFA5.4 |
| Welding Process | SMAW (Shielded Metal Arc Welding) |
| Diameter | 2.5 mm |
| Length | 300 mm |
| Packaging | 10.2 kg box (6 × 1.7 kg packets) |
| Country of Origin | Made in Sweden |
| Suitable Base Materials | AISI 316, 316L and similar austenitic stainless steels |
| Applications | Stainless Steel Fabrication, Chemical Processing, Marine, Food Processing, Pressure Vessels, Industrial Maintenance |
ESAB Welding Electrode OK 316L E316L-16 2.5x300mm 10.2Kg Box, 1.7Kg Pkt Made In Sweden.
The ESAB OK 316L Welding Electrode (Part No. 6398252030) is a premium AWS A5.4 / ASME SFA5.4 E316L-16 rutile-coated stainless steel electrode designed for Shielded Metal Arc Welding (SMAW) of AISI 316, 316L, and similar molybdenum-alloyed austenitic stainless steels. Manufactured in Sweden, this electrode delivers excellent corrosion resistance, superior weld quality, and reliable mechanical properties for demanding industrial and fabrication applications.
With a 2.5 mm diameter and 300 mm length, the electrode is ideal for welding thin to medium-thickness stainless steel sections. The low-carbon (L) weld deposit minimizes carbide precipitation during welding, significantly reducing the risk of intergranular corrosion while providing outstanding resistance to pitting, crevice corrosion, and aggressive chemical environments.
The rutile coating provides easy arc ignition and re-ignition, a smooth and stable arc, low spatter, and easy slag removal, resulting in clean, attractive weld beads with minimal post-weld finishing. Suitable for all-position welding, the electrode is widely used in chemical and petrochemical plants, food and beverage processing equipment, pharmaceutical manufacturing, marine and offshore fabrication, pressure vessels, heat exchangers, and stainless steel piping systems.
Supplied in a 10.2 kg box containing six 1.7 kg packets, the electrodes are moisture protected to maintain consistent welding performance, extended shelf life, and dependable quality in workshop and site environments.
Key Features
- Part Number: 6398252030
- AWS Classification: E316L-16
- Premium stainless steel SMAW electrode
- 2.5 mm diameter × 300 mm length
- Ideal for welding 316 and 316L stainless steels
- Low-carbon weld deposit for enhanced corrosion resistance
- Excellent resistance to pitting, crevice, and chemical corrosion
- Smooth, stable arc with low spatter
- Easy slag removal and excellent weld bead appearance
- Suitable for all-position welding
- 10.2 kg box (6 × 1.7 kg packets)
- Made in Sweden
Applications
- Stainless steel fabrication
- Chemical and petrochemical plants
- Food and beverage processing equipment
- Pharmaceutical manufacturing
- Marine and offshore fabrication
- Pressure vessels
- Heat exchangers
- Stainless steel piping systems
- Power generation
- Industrial maintenance and repair
Specifications
| Specification | Details |
|---|---|
| Brand | ESAB |
| Part Number | 6398252030 |
| Product Name | OK 316L Welding Electrode |
| AWS Classification | E316L-16 |
| Standard | AWS A5.4 / ASME SFA5.4 |
| Welding Process | SMAW (Shielded Metal Arc Welding) |
| Diameter | 2.5 mm |
| Length | 300 mm |
| Packaging | 10.2 kg box (6 × 1.7 kg packets) |
| Country of Origin | Made in Sweden |
| Suitable Base Materials | AISI 316, 316L and similar austenitic stainless steels |
| Applications | Stainless Steel Fabrication, Chemical Processing, Marine, Food Processing, Pressure Vessels, Industrial Maintenance |
